Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu APP Compatible

$59.99

$59.99 ~~$0.00~~

Ship to: USA

USA

Canada

Europe

Australia

Japan

Quantity

Free Shipping: On All Orders

Product Description

Product Reviews

FAQs

Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

Product Description

Upgrade your workflow with the Genmitsu Wireless Z-Axis Tool Setter. Designed for desktop CNC routers, this high-precision touch probe offers 0.02mm accuracy and a 20m Bluetooth range for cable-free operation. It features a durable stainless steel plate and a safety spring to prevent tool damage. Includes cables for specific Genmitsu models and a universal 3-pin open header for GRBL/Mach3 systems (5-24V). Efficiently powered by a CR2032 battery for 3,000 sets. Perfect for precise milling.

Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

Software Compatibility

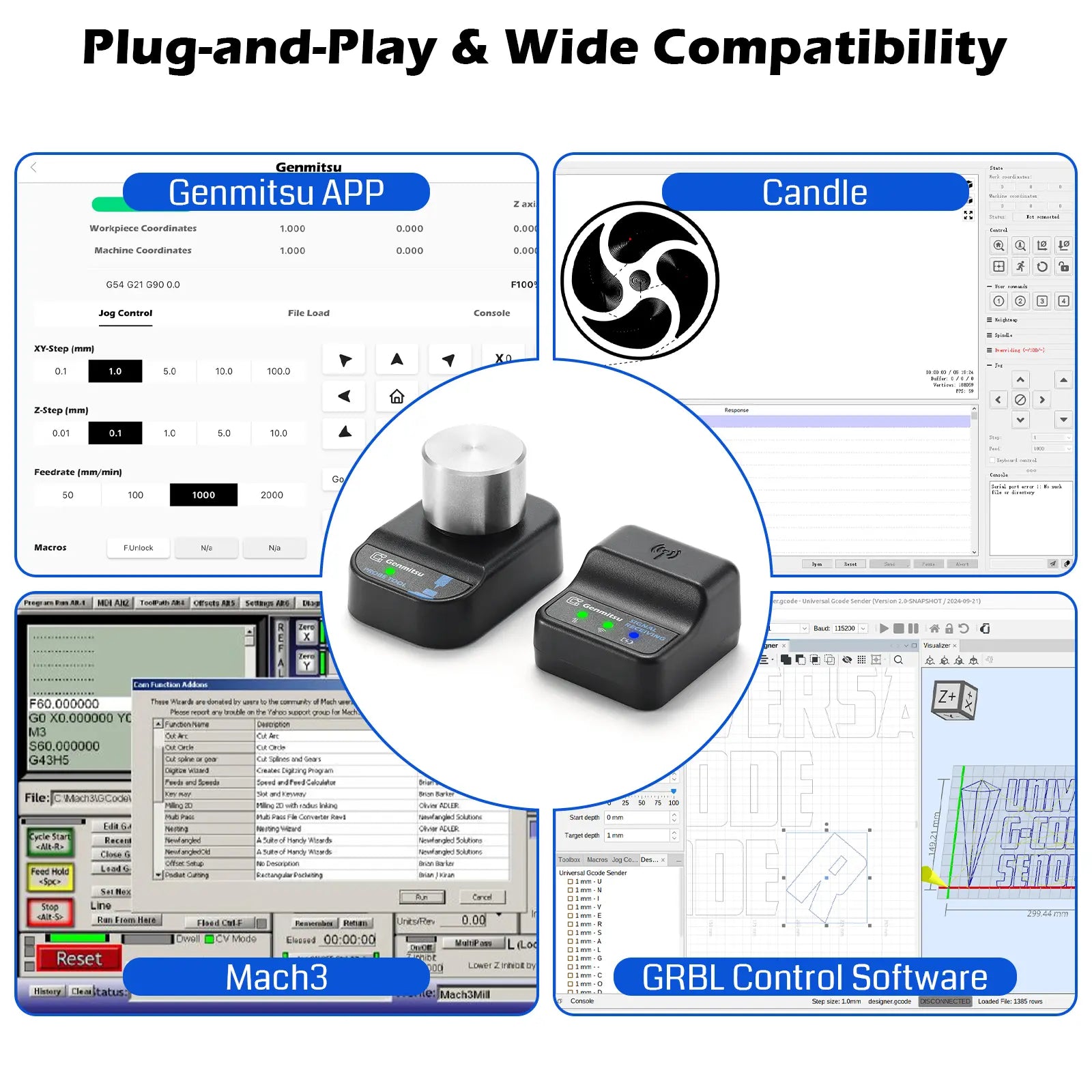

The wireless tool setter can be controlled directly from the Genmitsu App, Candle, UGS, and other GRBL or Mach3-based CNC control software.

Simple Operation

A built‑in signal light shows probe status at a glance, lighting up whenever the touch probe is active or triggered.

Flexible Installation

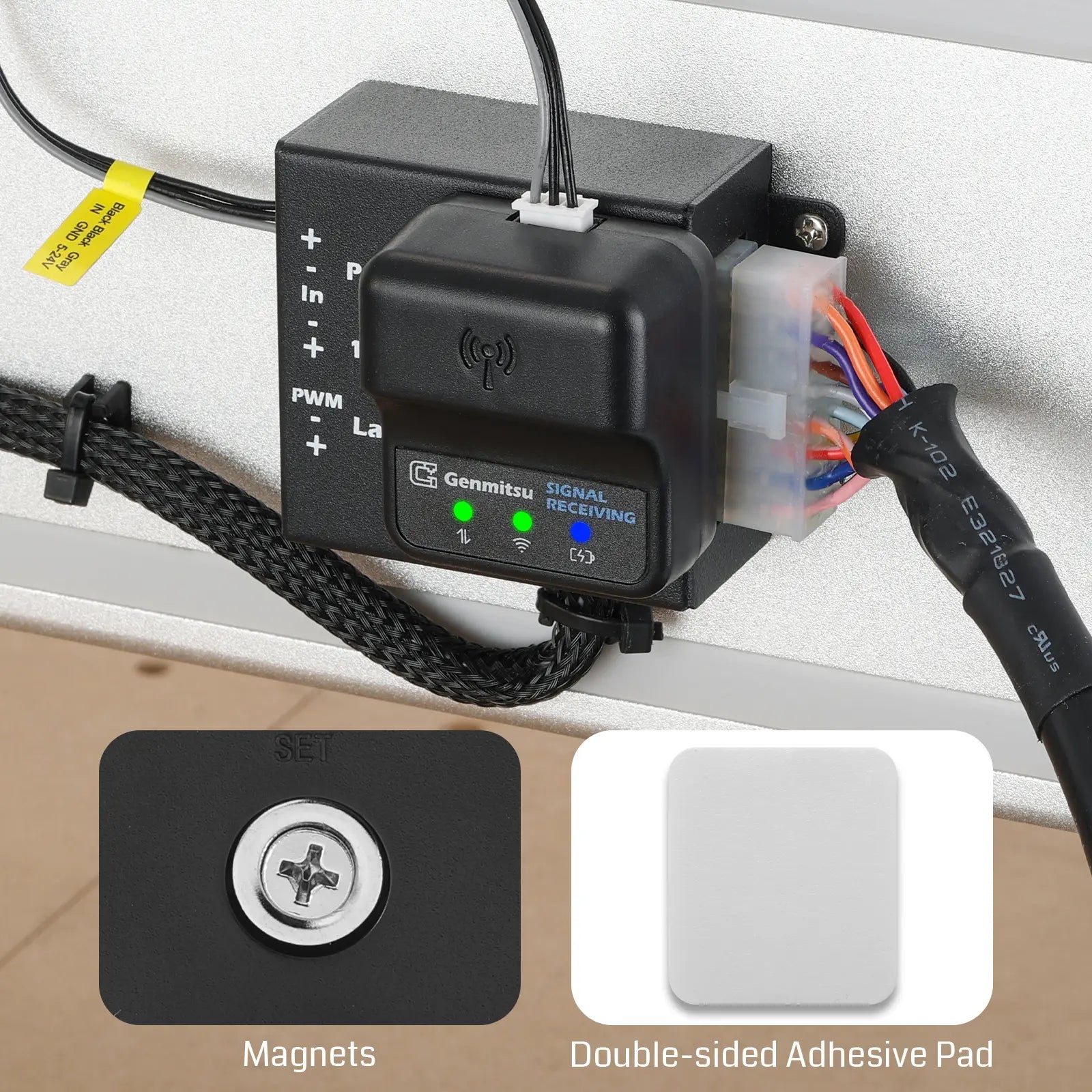

The wireless receiver has a rear magnet for quick mounting on metal surfaces, plus included double‑sided tape for attaching it almost anywhere.

Plug-and-Play

Quick setup with plug-and-play design and step-by-step instructions—no complex wiring needed.

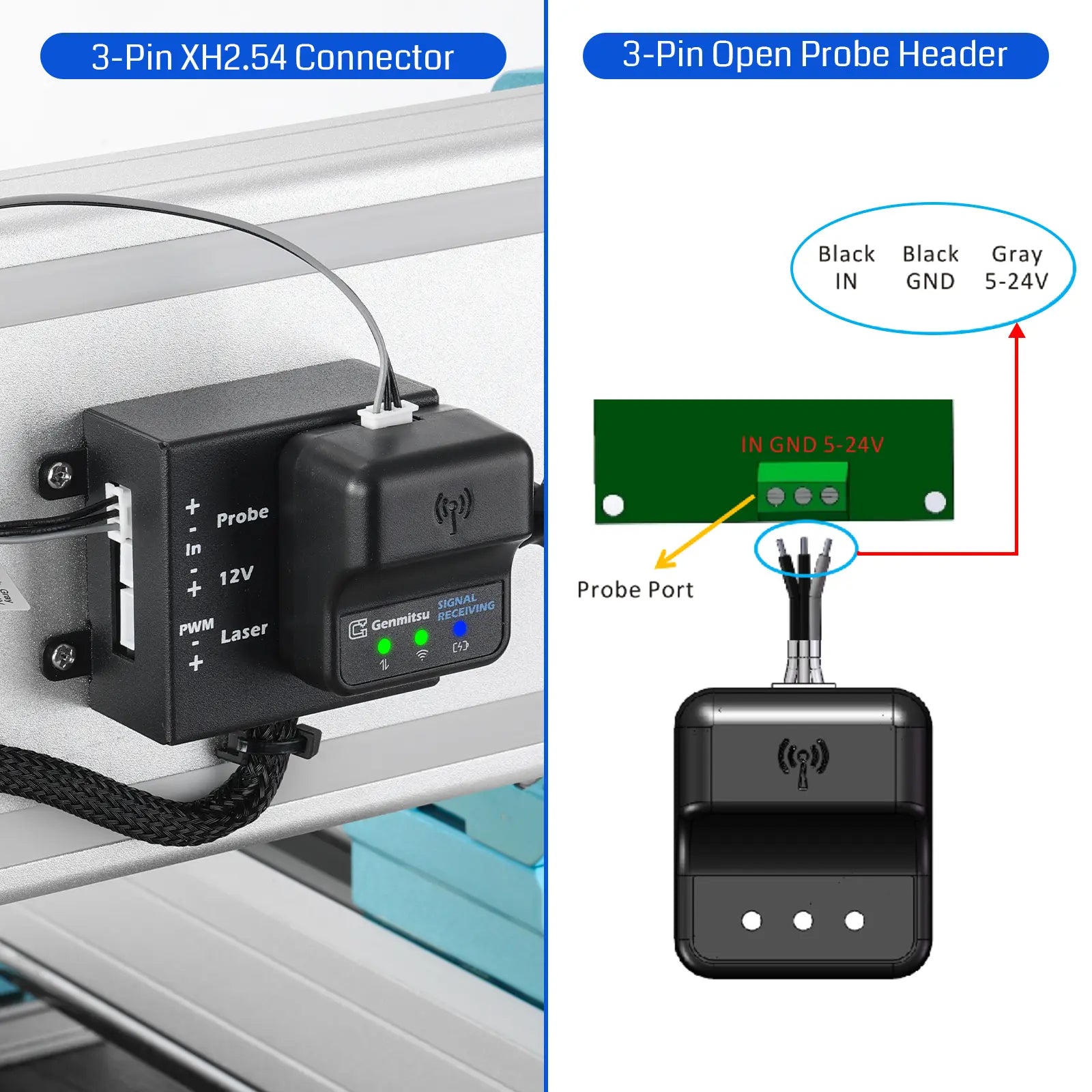

Use the Universal Cable to Connect

Compatible with a 3-pin open Z-probe port and different from the wiring sequence mentioned above.

Note: The actual wiring sequence should align with the probe interface pinout of your control board. Users must adjust accordingly based on their specific control board configuration. The probe interface voltage must remain within the range of 5-24V; exceeding this range may damage the device!

Wireless Z-Axis Probe Tool Setter for CNC Router Machine

Easy Set Up on Software

GSender and UGS:
Input the height value into "Z Thickness" directly.

Genmitsu APP:
Input the height value into parameter.

Candle:
Enter the following code into the "Probe command":

G21 G91 G38.2 Z-50 F50;
G92 Z38.25 — Input the height value
G1 G90 Z40.000 F200; — The lift height of the Z-axis after probing
G91 G38.2 Z-50.000 F20;
G92 Z38.25 — Input the height value
G1 G90 Z45.000 F200 — The lift height of the Z-axis after probing
